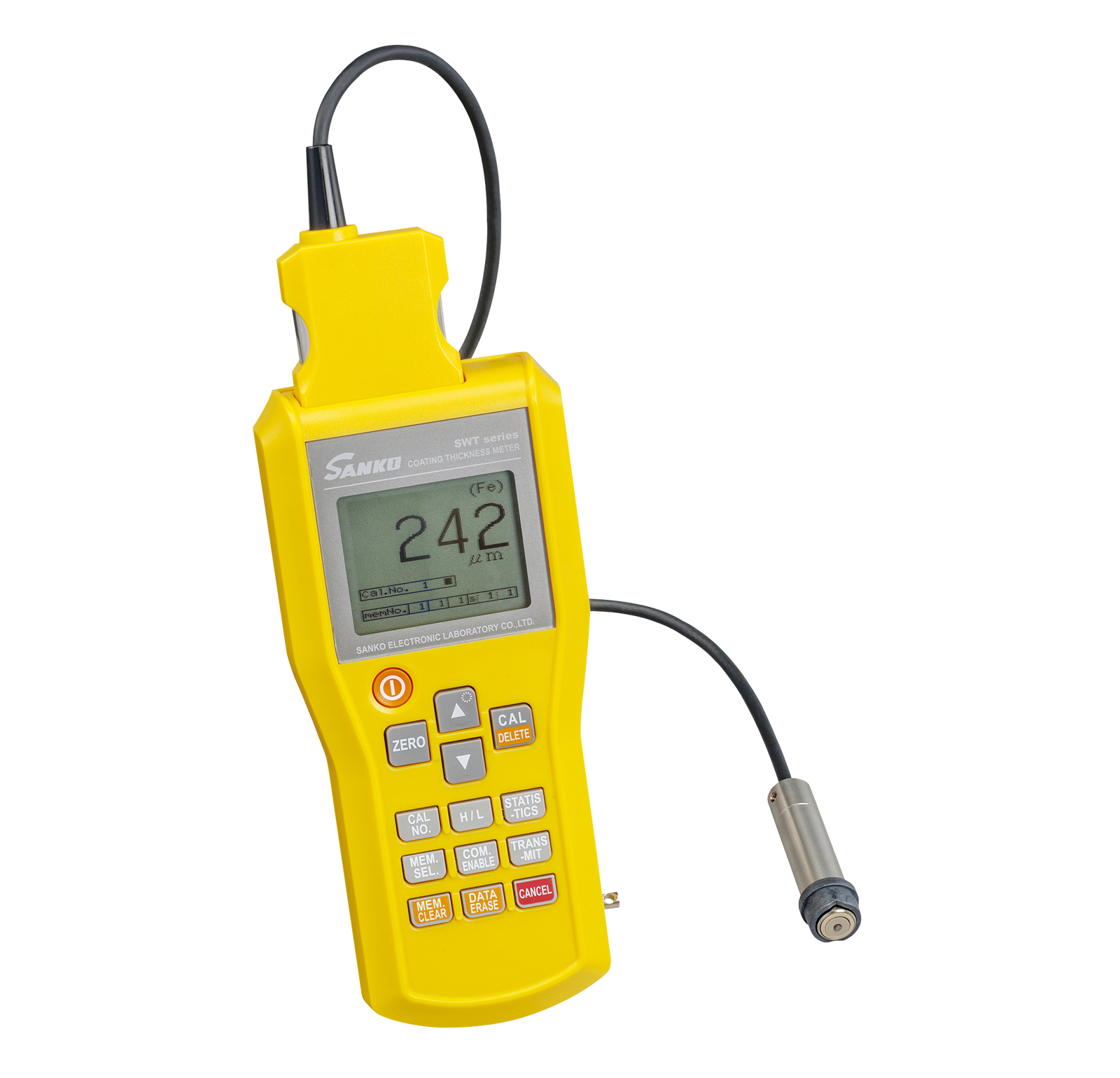

SWT-7200III
SPECIAL FEATURES
- Probe can be selected to meet optimal application of measurements.
- Guide-messages of operation procedures on LCD screen.
- A large capacity of measurement memory 10,000 points
- Measurements by simply calling registered calibrations.
- Built-in setting method of high/low limit values and statistical functions
- Availability of data transfer to PC by USB connections.
APPLICATIONS
●Coating / lining / plating
●Insulating films such as anodic oxide coating (ALMITE)
SPECIFICATION
Range
Depending on optional probes
Display
Graphic LCD (data , messages) , Backup light
Calibration
2 points calibration type
Calibration curve
10
Data memory
20,000
Data transfer
USB
Power source
Dry battery (LR6 1.5V)×2, Auto-power off,
Continuous operation hours:
50hrs.
Continuous operation hours:
50hrs.
Temperature
0～40℃ (non-condensing)
Dimensions
72(W) × 30(H) × 156(D) mm
Weight
200g
Accessories
Carrying case, Exclusive AC adaptor, USB cable, USB driver(CD)
Option
For ferrous substrate probe (Fe) For nonferrous substrate probe (NFe)
Interchangeable probes. Multi-functioned type with memory, statistics, data transfer to PC
