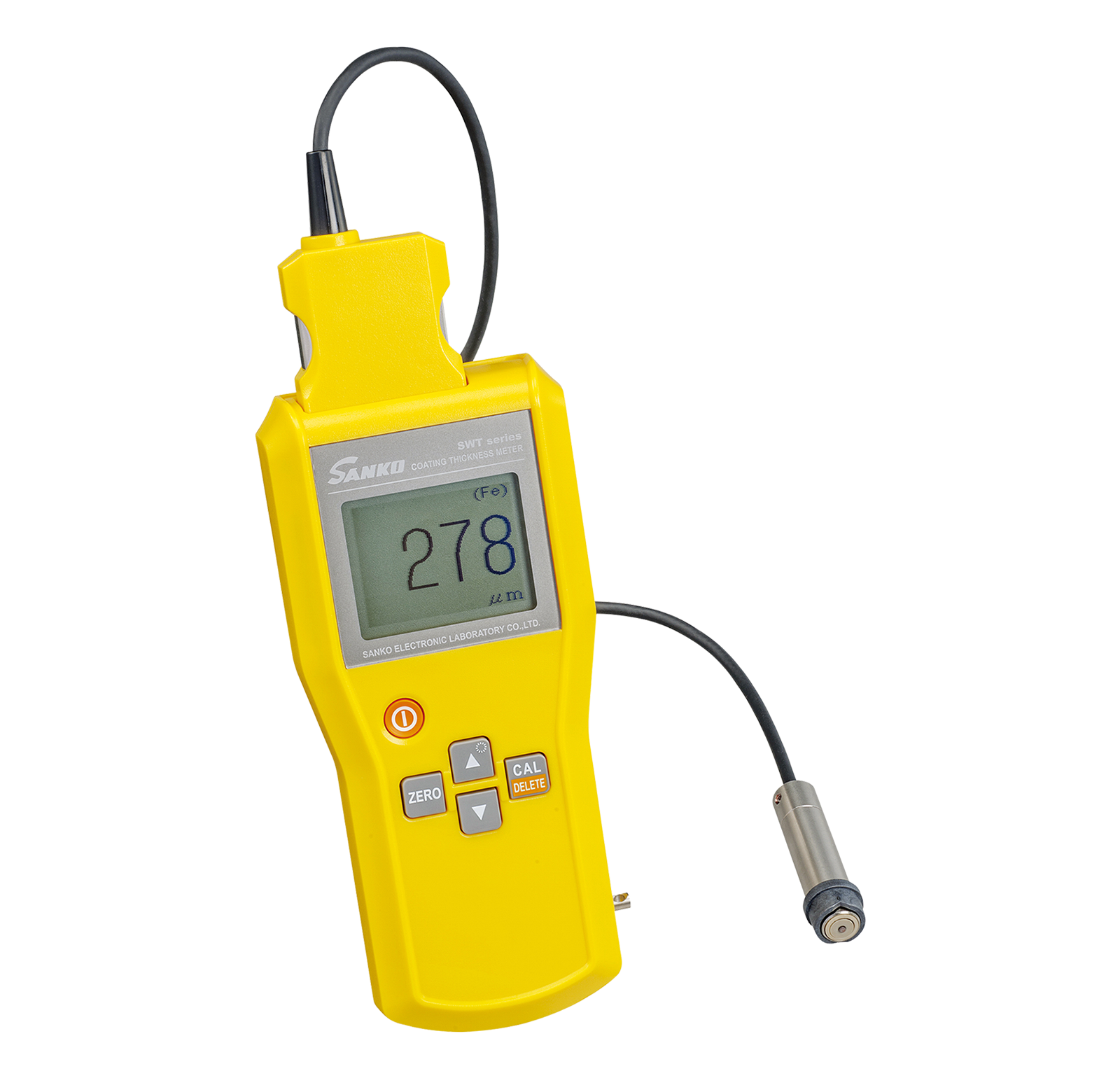

SWT-7000IIIF
SPECIAL FEATURES
- Wide measuring range of 0～2.5mm
- Immediate measuring possibility with Zero/Standard adjustment
APPLICATIONS
●Coating, lining, plating
●Coating in general
SPECIFICATION
Method
Electromagnetic
Range
0～2.50mm
Display
Graphic LCD ( data , messages ) , Backup light
Resolution
1μｍ ： 0～999μｍ
switching to
0.1μm ： 0～400μm
0.5μmm ： 400～500μm
0.01mm ： 1.00～2.50mm
switching to
0.1μm ： 0～400μm
0.5μmm ： 400～500μm
0.01mm ： 1.00～2.50mm
Accuracy (perpendicularly testing on flat face)
0～100μm ： ±1μｍ or ±2％ of reading
101μm～2.50mm ： ±2％ of reading
101μm～2.50mm ： ±2％ of reading
Power source
Dry battery (LR6×2), Auto-power off,
Continuous operation hours:
50hrs.
Continuous operation hours:
50hrs.
Temperature
0～40℃ (non-condensing)
Dimensions
72(W) × 30(H) × 156(D) mm
Weight
about270g
Accessories
Thickness standards, Zero plate for checking, Carrying case
Probe
One point contact constant pressure type, Ｖ cut, φ15 x 47mm
Probe built-in type with palm size
